Reed Relays Coil Voltage: 5 VDC Relay Contact Form: 1 Form A (SPST-NO) Maximum Switched Current: 500 mA Switching Voltage: 200 VDC Maximum Switched Power: 10 W Coil Suppression Diode: No Coil Resistance: 500 Ohms Termination Style: Through Hole data sheet: HE3621A0500.pdf...

5VDC Miniature Signal Relay Coil Voltage: 5 VDC Coil Resistance: 178 Ohms Power Consumption: 140 mW Relay Contact Form: 2 Form C (DPDT-NO, NC) Maximum Switching Current: 2 A Maximum Switching Voltage: 220 VDC, 250 VAC Maximum Switching Power: 60 W, 125 VA Coil Type: Non-Latching Contact Termination: Solder Pin Mounting Style...

Solid State Relays - Industrial Mount Operating Voltage: 1VDC - 100VDC Rated Load Current: 40A Maximum Off-State Leakage Current @ Rated Voltage: 0,3mA Maximum Pulse Width Modulation Frequency: 950Hz Control Voltage Range: 3.5-32 VDC Maximum Reverse Voltage: -32VDC Minimum Turn-On Voltage: 3.5V Must Turn-Off Voltage: 1V Maxi...

Smart Highside Power Switch Overvoltage protection Vbb(AZ) 63 V Operating voltage Vbb(on) 4.5 ... 42 V On-state resistance RON 18 mOhm Load current (ISO) IL(ISO) 21 A Current limitation IL(SCr) 70 A Current limitation Short-circuit protection Thermal shutdown Overvoltage protection (including load dump) Fast demagnetization...

Solid State Relays Control Voltage Range: 18 VAC to 36 VAC Mounting Style: Through Hole Termination Style: Solder Pin Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 280 VAC Load Current Rating: 25 A Output Type: SCR Package/Case: SIP-4 Series: PF Height: 34.3 mm Length: 43.1 mm Width: 18.3 mm data sheet:...

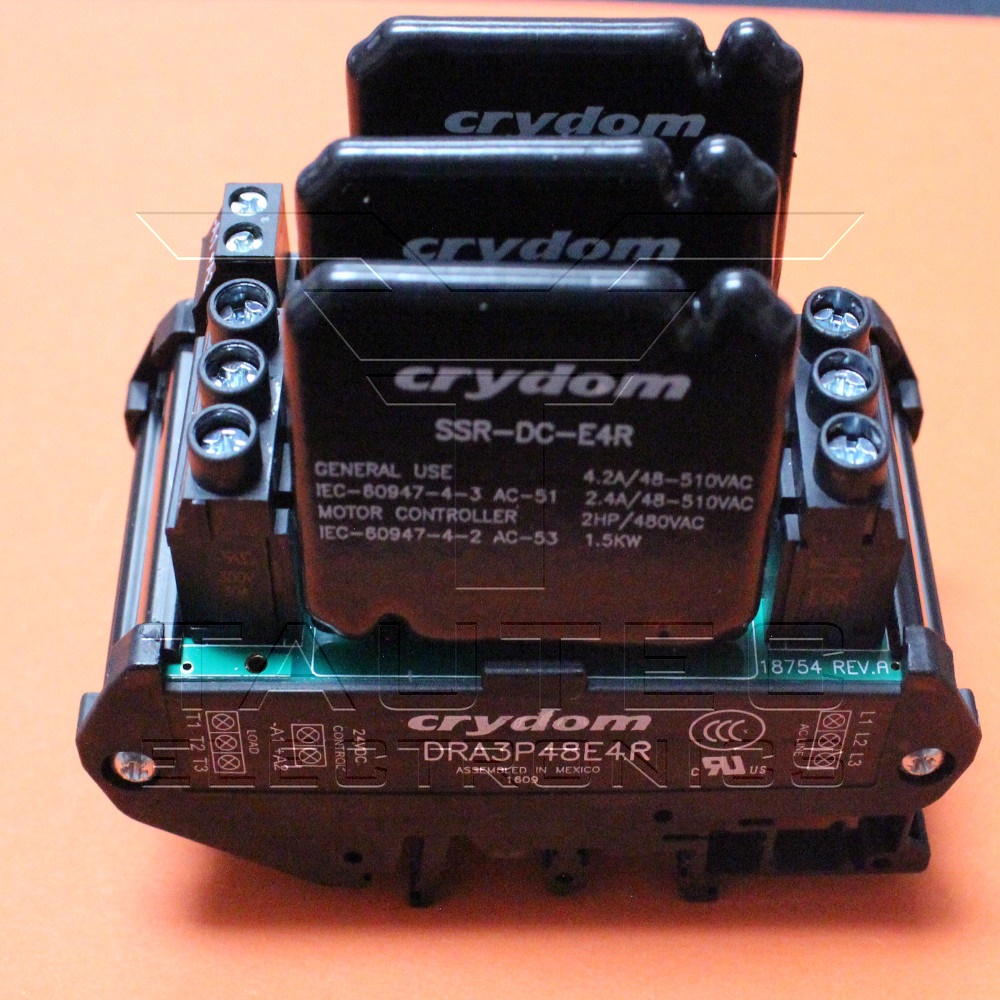

Three Phase Motor Reversing Contactor Control Voltage Range: 18 VDC to 28 VDC Mounting Style: DIN Rail Relay Contact Form: 3 Form A (3PST-NO) Load Voltage Rating: 48 VAC to 510 VAC Load Current Rating: 4.2 A Input Current: 15 mA to 20 mA Output Type: SCR Termination Style: Screw Type: Heavy Duty R: Instantaneous Turn-On ...
